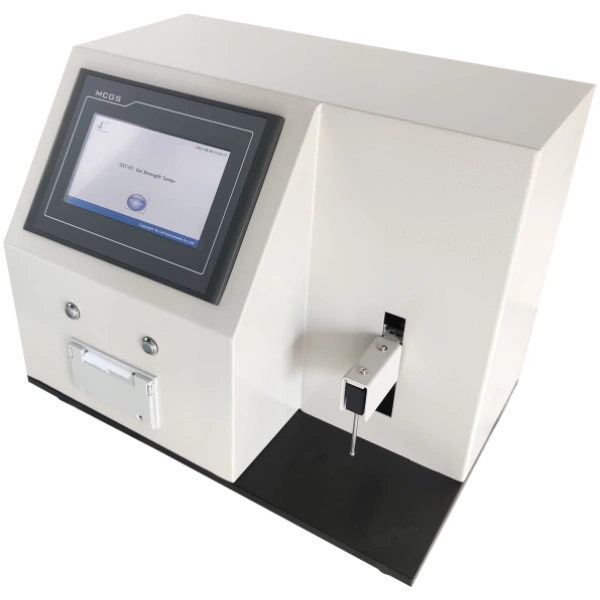

Bloom Tester

The Bloom Tester (Gel Strength Tester) is a precision instrument designed to measure gel strength, traditionally referred to as Bloom. It determines the force required to depress the surface of a gelatin gel by 4mm using a standard cylinder probe, ensuring consistent quality for applications in food, pharmaceuticals, and packaging.

Application of Bloom Tester

Why Gel Strength Measurement is Important?

Product Quality and Consistency: Bloom strength directly impacts product texture and usability, particularly in food and pharmaceutical products.
Regulatory Compliance: Compliance with standards like USP, ISO, and ASTM ensures product acceptance in global markets.
Cost Efficiency: Accurate testing minimizes waste by identifying optimal formulations and manufacturing conditions.

Technical Specifications of Bloom Tester

Key Parameters

Test Range	0-50N (or as required)
Stroke	110mm (without probe)
Test Speed	1~100mm/min
Displacement Accuracy	0.01mm
Accuracy	0.5% F.S.
Control	PLC and human machine interface
Output	Screen, Microprinter, RS232(optional)

Technical Features

Precision Contro	PLC-based system with an intuitive 7-inch touchscreen
Safety Mechanisms	Travel limit, automatic return, and load cell protection
Versatility	Multiple test modes for various applications

What is Bloom Strength – Working Principle

The Bloom Tester evaluates bloom strength of soft gelatin capsule based on a standardized procedure:

Gel Preparation: A gelatin gel is prepared under controlled conditions, typically at 10°C for 17 hours.
Probe Application: A 0.5-inch (12.7mm) diameter cylinder probe depresses the gel’s surface by 4mm.
Force Measurement: The force required to achieve this depression is recorded in grams and represents the gel’s Bloom strength.

This method provides repeatable results crucial for product consistency and quality assurance.

Configurations and Accessories

The GST-01 includes:

Standard Probe: 0.5-inch diameter for Bloom testing.
Calibration Tools: For maintaining accuracy and compliance.
Optional Software: Advanced data management features.
Specialized Fixtures: Available for additional texture analysis.

Support and Training

Installation and Setup: Ensures your equipment is ready to deliver accurate results.
Comprehensive Training: Covers operational, maintenance, and troubleshooting aspects.
Ongoing Technical Support: Our team is available to address your concerns and provide updates.

Frequently Asked Questions

What is Bloom Strength?

Bloom strength measures the firmness of a gel, defined as the force required to depress its surface by 4mm using a 0.5-inch cylinder probe.

Why Bloom Strength of Soft Gelatin Capsule is Important for Gelatin Capsules?

It ensures capsules remain durable during manufacturing, storage, and usage, maintaining pharmaceutical efficacy.

How is Gel Strength Measured?

The bloom tester uses a standard probe to apply controlled force to a gel’s surface, recording the required force in grams.
